Controller Case

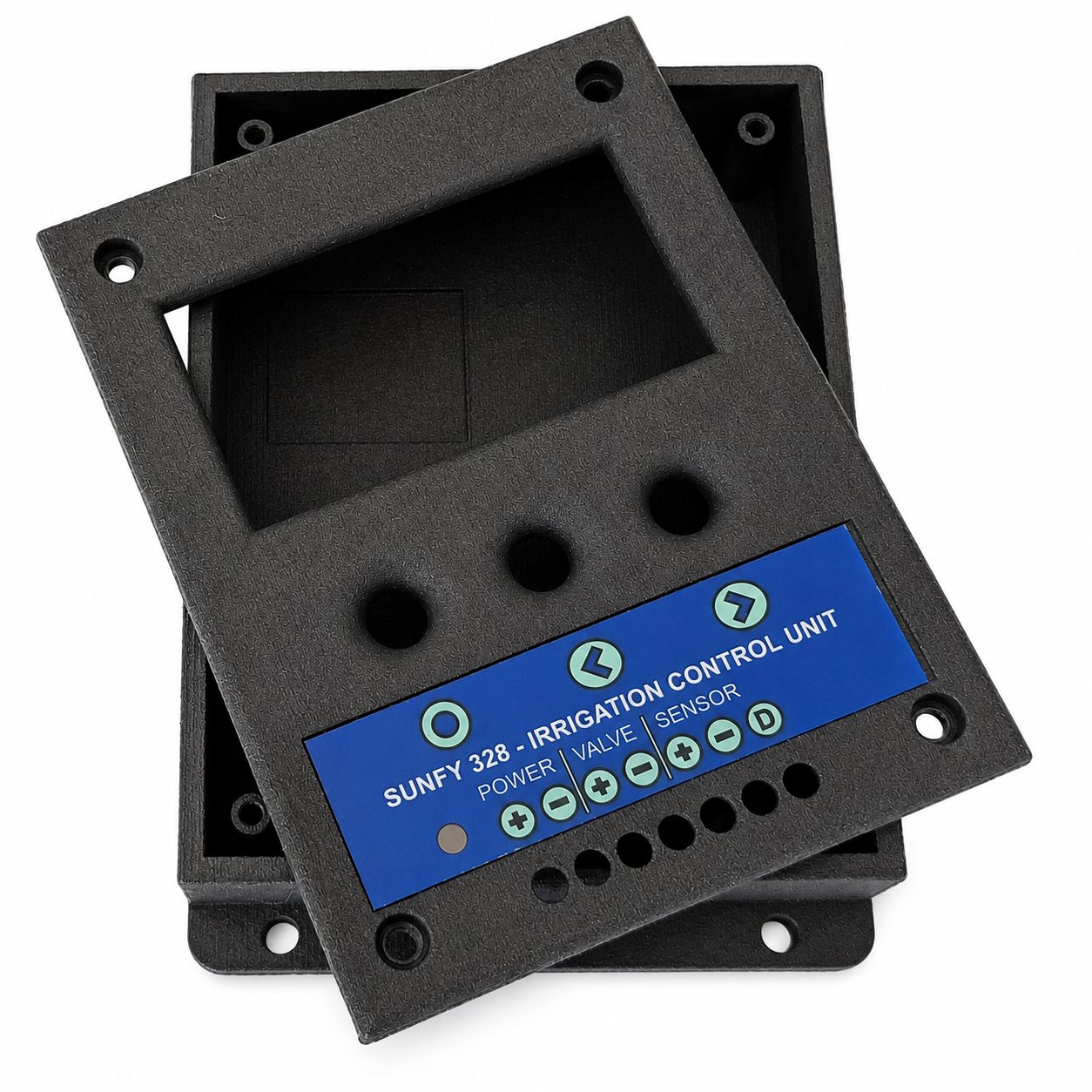

If you plan to install the controller outdoors, the case should be printed using a material that can withstand the high temperatures inside a box exposed to the summer sun.
I have personally tested nylon with very good results.
Four M3 × 6 mm screws are required to secure the PCB to the base of the enclosure, and another four M3 × 10 mm screws to fix the lid to the base.
The controller case is NOT included in the controller kit.
Files for 3D Printing
Picapot328-Base.stl (STL, 1.15 MB)
Picapot328-Cover.stl (STL, 3.45 MB)
3D Printing Services
To get the controller case printed in nylon or ABS, you can upload the STL files to a 3D printing service such as JLCPCB or PCBWay.
Please verify the material, dimensions, tolerances, and finishing options before placing your order. Picapot is not affiliated with these providers and is not responsible for their products or services.
Adhesive Label
To complete the enclosure, you can print the label for the lid. The label size is 68 × 20 mm.
If you get the controller kit from me, a high-quality, thick plastic sticker will be included.
The sticker currently shows the development codename SUNFY328, which will be updated to “Picapot” in the next order.
